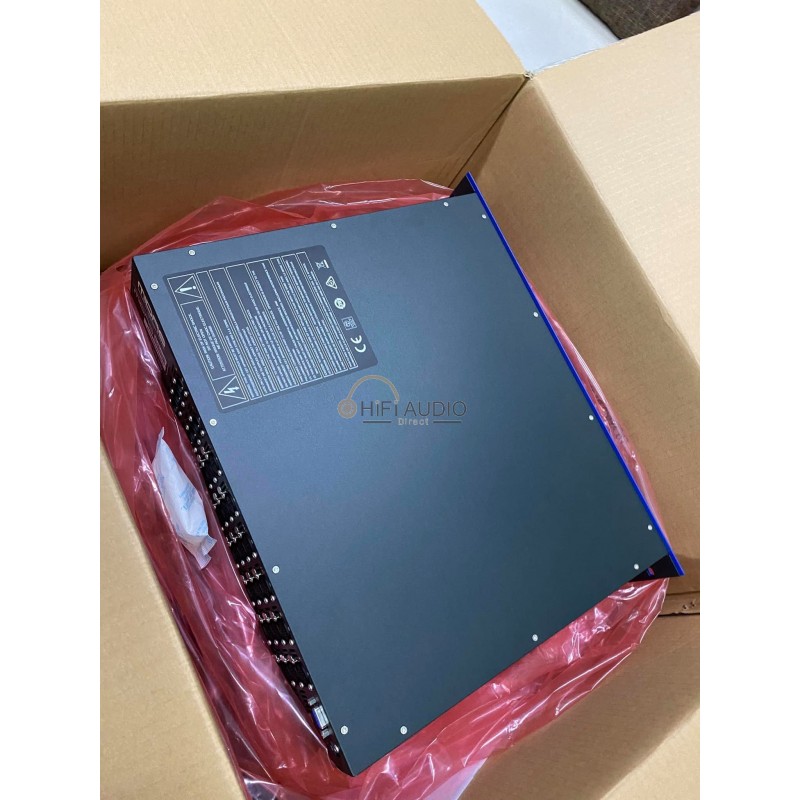

Midas DL251 PRO SERIES 48-input / 16-output Stage Box

The Midas DL251 is a 5U fixed-configuration I/O unit with 48 mic/line inputs and 16 mic/line outputs. Limited to analogue connections, the DL251 fives you a cost-effective solution if you don't need the flexibility of Midas modular I/O hardware. You get MIDI in, out and thru - plus one Ethernet control - standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL251 can be switched between 96kHz and 48kHz from the front panel. A rear-panel "mute all outputs" button makes for easy on stage re-patching. The unit is also equipped with dual redundant PSUs.

Specification:

• Type:Stage Box
• Compatibility:Midas Pro, M series
• Channels:48 x 16
• Inputs - Mic Preamps:48 x XLR
• Phantom Power:Yes
• Outputs - Main:16 x XLR
• Data I/O:3 x EtherCON (AES50), 1 x EtherCON (Ethernet control), 1 x DB-9 (diagnostics)
• Computer Connectivity:Ethernet
• MIDI I/O:In/Out/Thru
• Rackmountable:5U
• Power Source:Standard IEC AC jacks, dual redundant PSU's
• Depth:16.5"
• Weight:22 lbs.
