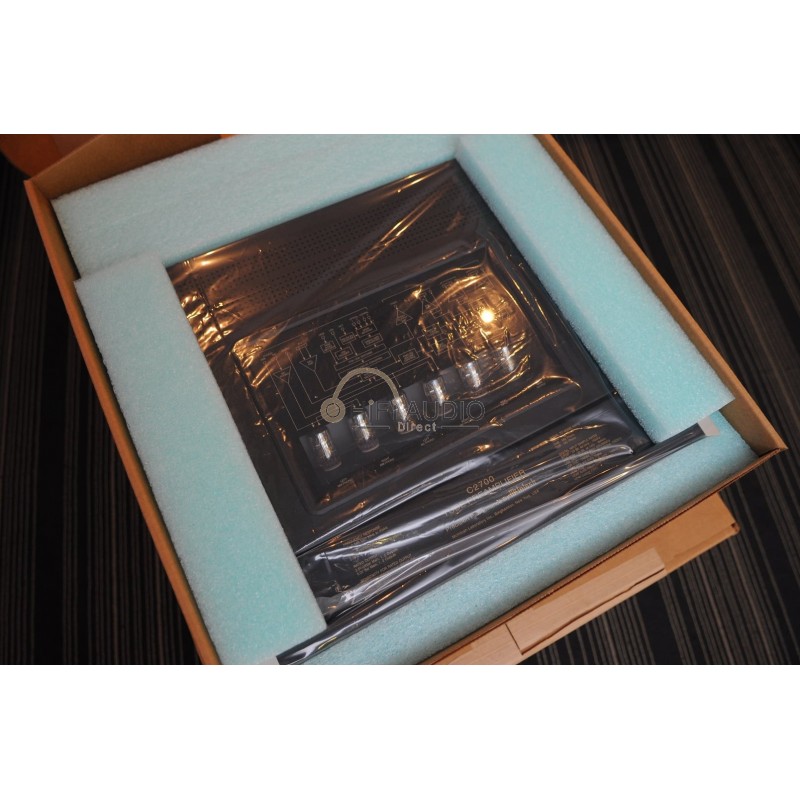

McIntosh C2700 Tube Preamplifier

For analog music, the C2700 has 9 inputs comprised of 3 balanced connections, 4 unbalanced connections, along with 1 Moving Coil and 1 Moving Magnet phono inputs for connecting a turntable or two. With a total of 16 inputs, the C2700 has a virtually infinite number of inputs to connect all your music sources. The dual chassis design keeps the analog and digital sections separate to prevent signal corruption. Outputs include 3 variable balanced and 3 variable unbalanced plus 1 fixed unbalanced connection.

Bass and treble tone controls are included and can be adjusted in 2dB increments. The ¼” headphone jack is powered by McIntosh's High Drive Headphone Amplifier, which can power almost any pair of headphones; Headphone Crossfeed Director (HXD®) is included and brings an added dimension to your personal listening session when activated. Home Theater Pass Through allows the C2700 to be seamlessly integrated into your home theater system. Power Control ports let you easily turn other connected McIntosh components on and off, while the Data Ports can send remote control commands to connected source components.

All the C2700’s audio technology is packed inside the timeless McIntosh design highlighted by a black glass front panel backlit by direct LED lighting, blue meters, rotary knobs, an illuminated logo, aluminum end caps and a polished stainless steel chassis. The 6 alluring vacuum tubes can be viewed through a glass panel located on the top of the preamplifier. It can be paired with an assortment of amplifiers, CD players, turntables, tuners, media streamers, room correction devices and power controllers, and speakers to complete your home audio system.

Specification:

• Number of Channels: 2
• Total Harmonic Distortion: 0.08%
• Frequency Response: +0, -0.5dB from 20Hz to 20kHz; +0, -3dB from 15Hz to 100kHz
• Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS
• Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV
• Sensitivity Phono (Moving Coil): 0.45mV
• Sensitivity Phono (Moving Magnet): 4.5mV
• Signal To Noise Ratio (High Level): 100dB
• Signal To Noise Ratio (Moving Coil): 80dB
• Signal To Noise Ratio (Moving Magnet): 82dB
• Voltage Gain (High Level): 15dB
• Voltage Gain (Moving Coil): 60dB
• Voltage Gain (Moving Magnet): 40dB
• Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm
• Balanced Input: 3
• Unbalanced Input: 4
• Phono Input Moving Coil: 1 (adjustable)
• Phono Input Moving Magnet: 1 (adjustable)
• Upgradeable Digital Audio Module: Yes: DA2
• Digital Coaxial Input: 2
• Digital Optical Input: 2
• Digital MCT (DIN) Input: 1
• Digital USB Input: 1
• HDMI (ARC) Input: 1
• Digital AES/EBU Input: 0
• Balanced Fixed Output: 0
• Balanced Variable Output: 3
• Unbalanced Fixed Output: 1
• Unbalanced Variable Output: 3
• Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)
• Input Level Match: Yes, +/- 6dB
• Home Theater PassThru: Yes
• Unbalanced Analog Connector Type: Premium gold-plated solid brass
• Service Port: 1
• Tone Controls: Bass and Treble
• Tone Bypass and Input Assign: Yes
• RS232 Control Input: Yes
• Power Control Output: 1 Main, 4 Trigger
• Rear Panel Data Port: 6
• Rear Panel IR Sensor Input: Yes
• Tubes: (5) 12AX7a and (1) 12AT7
• Power Consumption (On): 50 Watts
• Dimensions (W x H x D): 17.5" (44.45cm) x 7.625" (19.37cm) x 18" (45.72cm)
• Weight: 29.5 lbs (13.4kg); Shipping 45 lbs (20.4kg)
